Интерьерное украшение Ультратонкий гибкий DC5V P4 полноцветный светодиодный мягкий прозрачный пленочный экран

The product’s permeability can reach up to 95%, and the lighting is good. The screen body is almost imperceptible 3 meters away. Different from the traditional LED’s ultimate pursuit of clarity, the LED crystal truss screen has high permeability, which does not block the daily indoor lighting and does not affect the viewing line.

Интерьерное украшение Ультратонкий гибкий DC5V P4 полноцветный светодиодный мягкий прозрачный пленочный экран

The product’s permeability can reach up to 95%, and the lighting is good. The screen body is almost imperceptible 3 meters away. Different from the traditional LED’s ultimate pursuit of clarity, the LED crystal truss screen has high permeability, which does not block the daily indoor lighting and does not affect the viewing line.

Наши продукты

ПРОДУКТ

Преимущества

Transparent and beautiful | Flexible arbitrary folding | Super bright transparent display | Ultra-thin and arbitrary cutting | Minimalist installation

Наши продукты

ПРОДУКТ

Функции

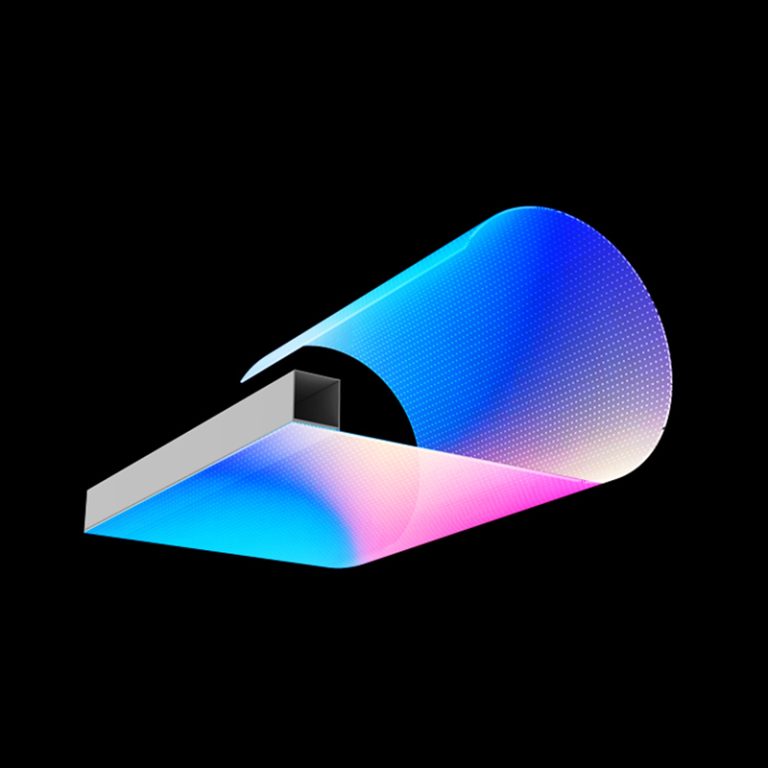

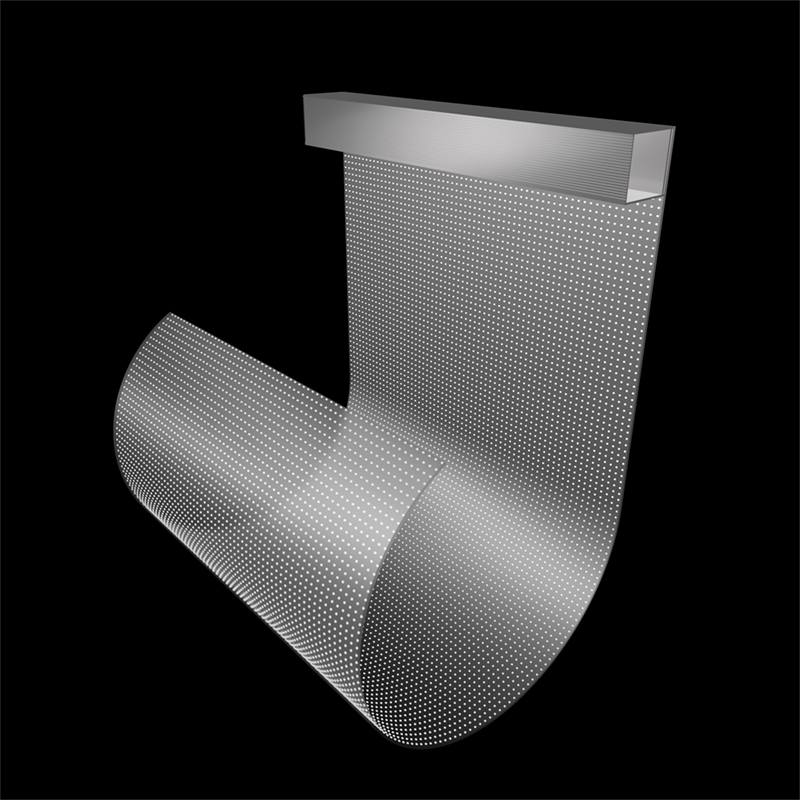

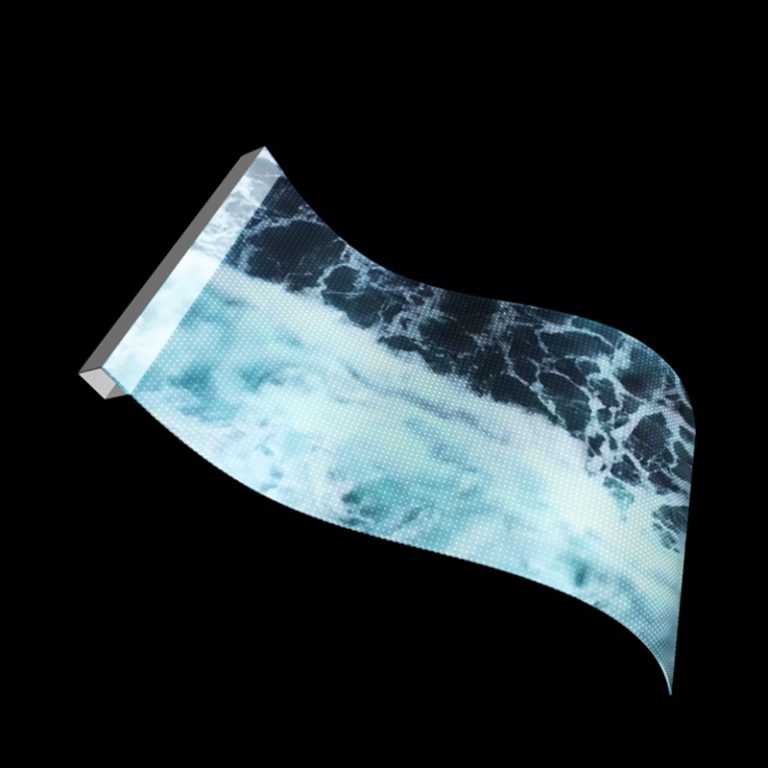

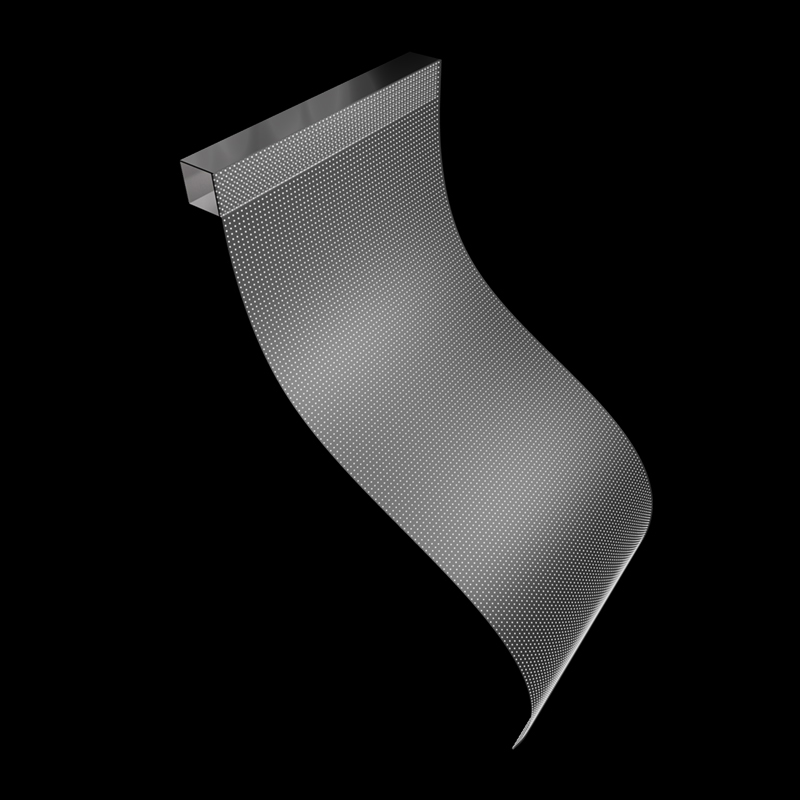

Flexible arbitrary folding

The flexible folding technology of LED crystal honing screen allows it to fit all kinds of curved surfaces perfectly and is no longer limited by plane. Its free deformation ability allows you to exert your creativity and create unique visual effects. Whether it’s a curved wall or a tortuous ceiling, the LED crystal honing screen can perfectly adapt and present a flowing picture.

Super bright transparent display

The brightness of the product can reach 6000 CD/m, highlighting, the highest transparency can reach 95%, the lighting is good, and the screen body is almost imperceptible 3 meters away. Different from the traditional LED’s ultimate pursuit of clarity, the LED crystal honing screen has high permeability, which does not block the daily indoor lighting and does not affect the viewing line.

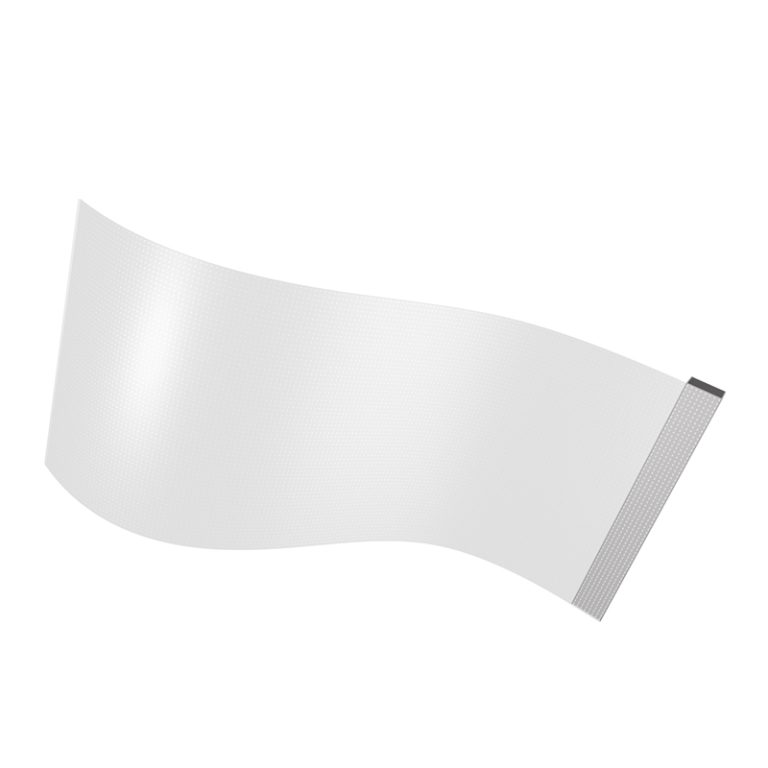

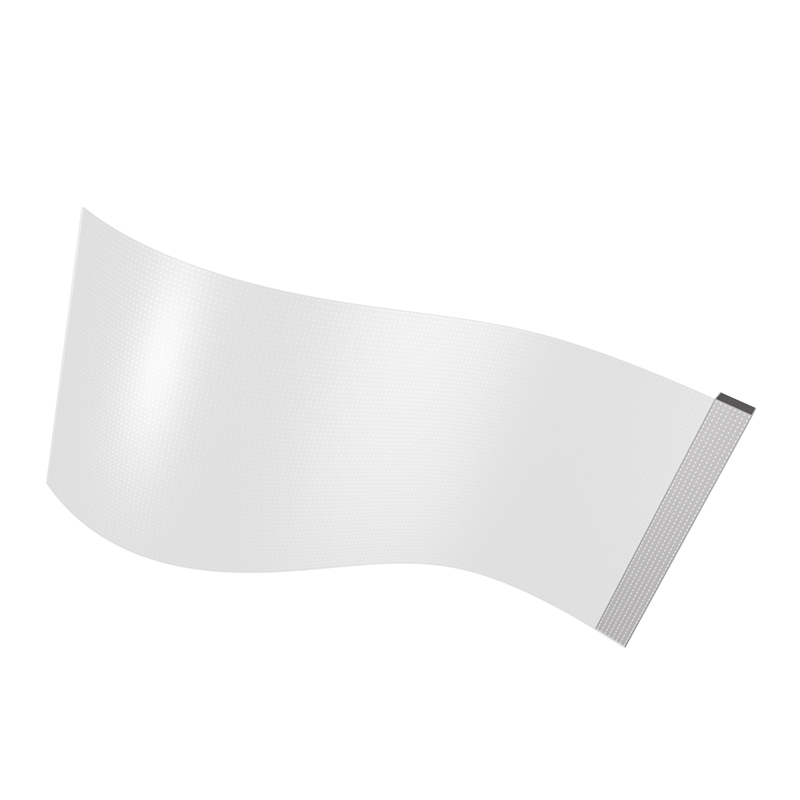

Ultra-thin and arbitrary cutting

The thickness of the product is 1.5mm, and the weight of the display board is 1.5 kg/m, which is lighter, thinner and more transparent. The product is not limited by size, and the size and shape can be customized according to the project requirements. It can be pasted on glass or wall with any radian, without affecting the display effect, forming a complete and integrated special-shaped display screen.

Minimalist installation

Minimally installed, it lights up as soon as it is attached, without steel frame structure, and it can be attached to the glass surface, saving installation cost. It can be attached, hoisted and installed in various sizes, and can be spliced and installed at will, which is simple and fast.

Наши продукты

ПРОДУКТ

Спецификация

Specification Table for Flexible LED Transparent Film Screen
Specification parameters Unit P20 P16 P10 P8 P6 P5 P4
Pixel density Dot/m² 2500 3906 10000 15625 27778 40000 62500
LED devices / WE2121RGB-IC WE2121RGB-IC WE2121RGB-IC WE2121RGB-IC WE2121RGB-IC WE1314RGB-IC WE1314RGB-IC
Module Size mm 240*960 OR 240*1400 240*960 OR 240*1400 240*960 OR 240*1400) 240*960 OR 240*1400 240*960 OR 240*1200 240*1000 OR 240*1200 240*960
Module pixel Dot 12*48 OR 12*70 15*60 OR 15*87 24*96 OR 24*140 30*120 OR 30*175 40*160 OR 40*200 48*200 OR 48*240 60*240
Number of receiving cards PCS 1PCS 1PCS 1PCS 1PCS 2PCS 2PCS 2PCS
Module weight Kg/m² <3kg/㎡ <3kg/㎡ <3kg/㎡ <3kg/㎡ <3kg/㎡ <3kg/㎡ <3kg/㎡
Typical brightness value Cd/m² 1000 1500 2000 2500 2800 2900 3000
Permeability % 95 94 93 92 90 88 87
Best view distance m ≧20 ≧16 ≧10 ≧8 ≧6 ≧5 ≧4
Viewing angle degree(°) 160 160 160 160 160 160 160
Working voltage / DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V
Input voltage / AC200-240V       OR AC100-120V AC200-240V   OR AC100-120V AC200-240V       OR AC100-120V AC200-240V       OR AC100-120V AC200-240V       OR AC100-120V AC200-240V       OR AC100-120V AC200-240V       OR AC100-120V
Average power consumption W/m² 80 130 200 200 200 200 200
Maximum power consumption W/m² 250 380 600 600 600 600 600
Installation method / Lifting or double-sided tape installation Lifting or double-sided tape installation Lifting or double-sided tape installation Lifting or double-sided tape installation Lifting or double-sided tape installation Lifting or double-sided tape installation Lifting or double-sided tape installation
Brightness control level / 256 256 256 256 256 256 256
Gray level bit 16bit 16bit 16bit 16bit 16bit 16bit 16bit
Рабочая температура ºC “-20~+55 “-20~+55 “-20~+55 “-20~+55 “-20~+55 “-20~+55 “-20~+55
Working humidity / 10-65%RH 10-65%RH 10-65%RH 10-65%RH 10-65%RH 10-65%RH 10-65%RH
Typical lifespan ЧАС >100000hrs >100000hrs >100000hrs >100000hrs >100000hrs >100000hrs >100000hrs
Control system / Nova/Carlet
Explanation: 1. The width direction of module 480 or 240 cannot be trimmed, and the length direction, such as 1200 direction, can be trimmed to a shorter size.
2.If customized specifications are required, please contact the manufacturer for technical and cost confirmation
Спецификация продукта
Спецификация продуктаXH-HXH2503P12 ,XH-HXH2503P12 ,XH-HXH2503S12/24
Рабочее напряжениеDC12V,DC12V,DC24V
Цвет источника светаRGB, RGBW, RGB
КонтрольDMX512,DMX512,TTL продолжение плохой точки
Пикселей на дюйм256/64 шт., 144 шт., 400 шт., 256/64 шт., 144/36 шт., 400 шт., 400 шт.
Расстояние между пикселями62,5/125 мм,83,3 мм,50 мм;62,5/125 мм,83,3/166,7 мм,50 мм;50 мм
Вес экрана5,4/1,9 кг, 1,3 кг, 1,3 кг; 5,4/1,9 кг, 3,4/1,3 кг, 6,3 кг; 6,3 кг
интенсивность освещения5000/2500 кд,4000 кд,7000 кд;5000/2500 кд,4000/500 кд,7000 кд;7000 кд
Безопасность:
Угол освещения160°
Степени защитыIP67
Класс электробезопасностиIII тип
Рабочая температура-20°С до ±60°С
Рейтинг огнестойкостиУровень V-0
Степень ударопрочностиИК10
Средняя продолжительность жизни>30000ч
Испытание солевым туманомУстойчивость к соляному туману
